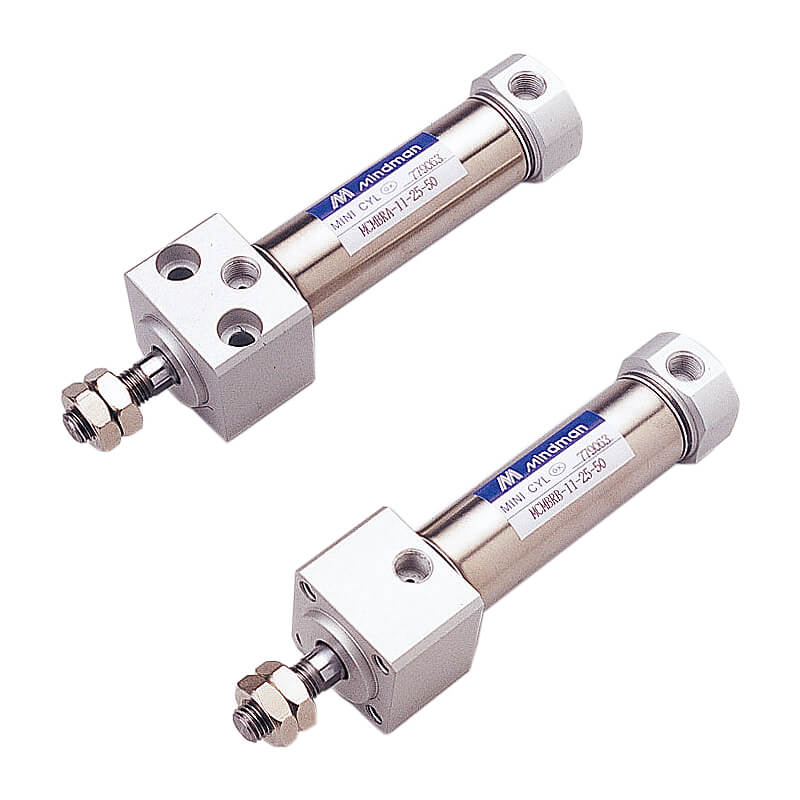

Mini Cylinder – MCMBRA

Tube I.D. φ20, 25, 32, 40 (mm). Because it is a directly mounted style without using barckets, its overall length is shorter, and its installation pitch can be made smaller. Thus, the space that is required for installation has been dramatically reduced.

Tube I.D. (mm)	20, 25, 32, 40
Port size	Rc1/8, Rc1/4
Medium	Air
Max. operating pressure	1 MPa
Min. operating pressure	0.05 MPa
Proof pressure	1.5 MPa
Ambient temperature	－5~＋60℃ (No freezing)
Lubricator	Not required
Available speed range	50~500mm/sec
Max. allowable kinetic energy	Cushion pad: 0.12~0.53 J Cushion air  : 0.14~0.59 J
Cushion	with rubber cushion pad
Sensor switch	RCM
Sensor switch band	BM20~BM40
